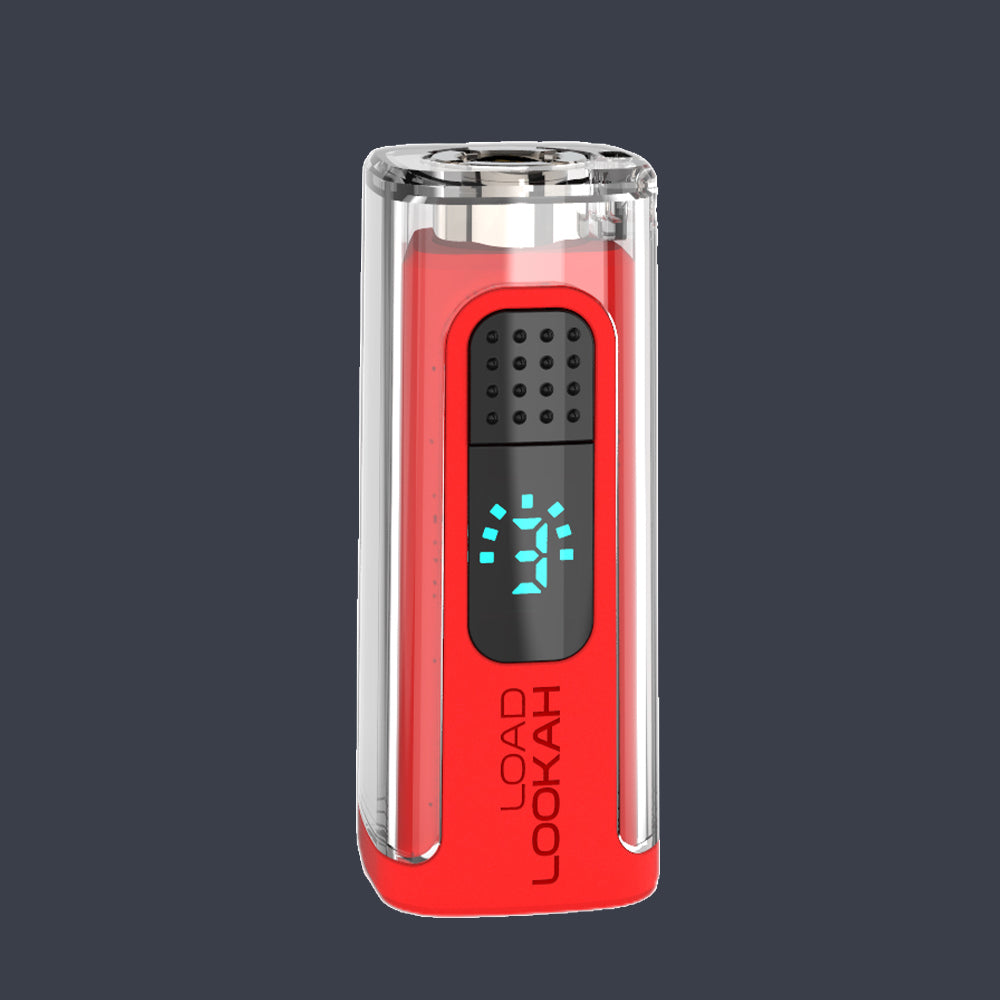

If you're looking for a portable, reliable, and versatile 510 battery that won't break the bank, the Lookah Load is a decent option for both beginners and experienced vapers.
Three temperature settings and a 10s preheat function offer customization, while the compact design, LED digital screen, 500 mAh capacity, and USB-C charging add to its functionality.
Tech Specs:
-
Built-in Battery: 500mAh
-
Variable Voltage: 3.2V, 3.6 V, and 4.0V
-
Charging Current: 300mA
-
Input Voltage: 5V
-
Resistance: 0.5 to 5 Ohms
- Single-Button Operation
- LED Digital Screen
-
Dimension: 23mm x 22mm x 56.5mm
-
Available Colors: Red, Black, Gray, Orange, Blue
Package Includes:
- 1 x Load Battery
- 1 x User Manual
Key Features of the LOOKAH Load Mini 510 Thread Battery:
1. Lookah Load – Small Body, Big Energy
The Lookah Load 510 vape battery may be one of the smallest 510 thread batteries on the market, but don’t let its size fool you—this little beast delivers reliable power, fast charging, and smooth vapor on the go. With a discreet design and intuitive controls, it’s the perfect companion for low-key, high-quality sessions.
2. Mini Portable Size – Just 57mm Long, Practically Weightless
At just 57mm in length, the Lookah Load is shorter than most lighters, making it the perfect everyday carry. Toss it in your pocket, wallet, or bag—you’ll forget it’s even there until it’s time to puff. Also, a lanyard loop hole or wrist strap hole has been integrated into the Lookah Load's body so that you can hook it up to a lanyard and wear it around your neck.
3. 500mAh Type-C Rechargeable Battery – Small But Mighty
Despite its size, the 500mAh battery is powerful enough to handle multiple sessions a day. It also features a modern, convenient USB Type-C port on the bottom that can be easily plugged into a power source for fast charging.
4. One-Button Operation – No Manual Needed
Just click and go. With its single-button interface, everything from turning it on to changing voltages is simple. Even first-time users will feel like pros with the Lookah Load.
5. 3 Voltage Levels
Double-tap the power button to switch between the three voltage settings; each one is indicated by a number that will show on the display screen.
Tailor your session with three preset voltage levels:
- 3.2V for rich flavor
- 3.6V for balanced hits
- 4.0V for dense clouds
Switch easily with two quick clicks—your flavor, your power, your way.
6. 10-Second Preheat Mode – Smooth from the Start
Activate the 10-second preheat to warm up your oil evenly before every session. This feature helps avoid cold hits and ensures smoother, more flavorful draws from the very first puff.
7. LED Indicator – Always Know Your Status
The Load Lookah battery has an LED display screen that shows the power balance, allowing you to check the battery condition anytime and charge it before it runs out. The digital display can also show heating mode types 1, 2, or 3. Each corresponds to a different voltage mode.
How To Use The LOOKAH Load 510 Thread Battery?
The Lookah Load 510 vape pen battery uses a single button and has an LED display, making it easy and convenient to use. Just follow these steps to use the Load battery if it’s your first time:
Step 1: Gently screw the cartridge onto the device in a clockwise direction until it is snug.
Step 2: Press the button five times quickly to turn it on. The LED will flash three times.
The device will then start a 10-second automatic preheat with a countdown display. You can press the button once to stop the preheating.
After the preheating, the number "0" and the LED will flash twice.
Step 3: Press the power button twice to cycle through 3 voltage settings: 1>2>3>1. The LED screen will flash numbers 1, 2, and 3 for the different voltage levels. Mode 1: 3.2V, Mode 2: 3.6V, Mode 3: 4V.
Step 4: Press and hold the power button for 10 seconds, while drawing vapor from the mouthpiece.
The device will stop heating after 10 seconds. The light will flash five times and enter standby.
Step 5: Press the power button five times in 2 seconds to turn the device off. The white light will flash three times.
The device will automatically turn off after 60 minutes of no operation.
How To Charge The Lookah Load 510 Thread Battery?
Connect a USB Type-C cable to the charging port of the Lookah Load. Plug the other end of the cable into a compatible 5V wall charger or USB port on a laptop.
When charging: The LED indicates bars flash counterclockwise in a scrolling form.
When the battery is fully charged, the LED will remain on with all bars lit while the USB cable is connected.
Alarms in case of abnormality
1. Short-circuit alarm: "0" displayed. Replace the atomizer.
2. Open-circuit alarm: "9" displayed. Replace the atomizer.
3. Low battery alarm: "L" displayed. Charge the device before use.
LOOKAH Load Mini Vape Pen Battery FAQ
Q: LOOKAH Load Showing 9 Or 0. How To Fix It?
A: Showing 9 or 0 indicates a short circuit or open circuit. Please check the thread and the contacts on the Load battery and the cartridge, ensure they are clean, and make a good connection.
Q: LOOKAH Load Is Showing 8. How To Fix It?
A: Showing 8, meaning the load battery is fully charged. You don’t need to charge it anymore.
Q: Why Does The Load Vape Battery Show “L”? How To Fix It?
A: This means the load battery has low power. You need to charge it.
LOOKAH Load Vape Battery User Manual
Download
